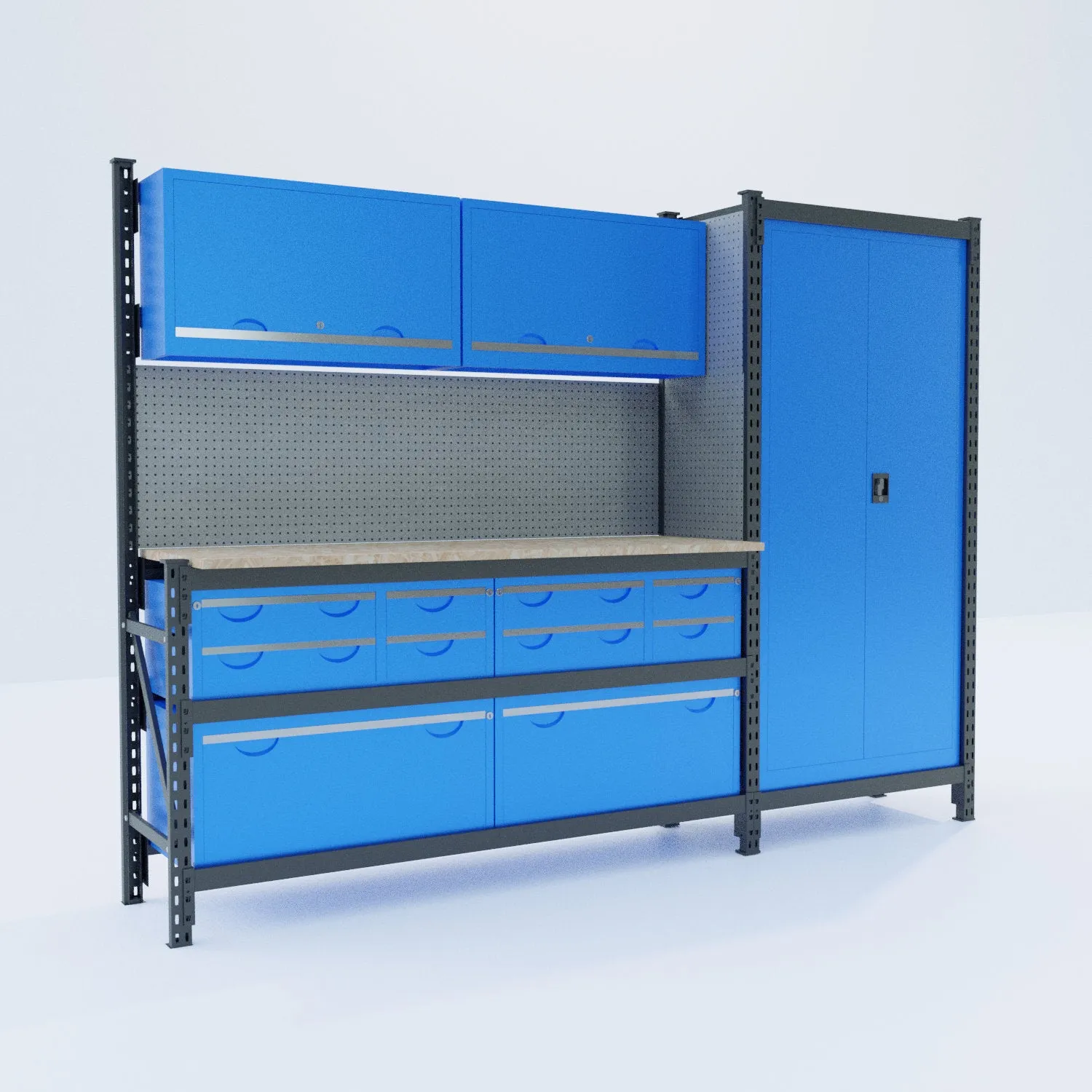

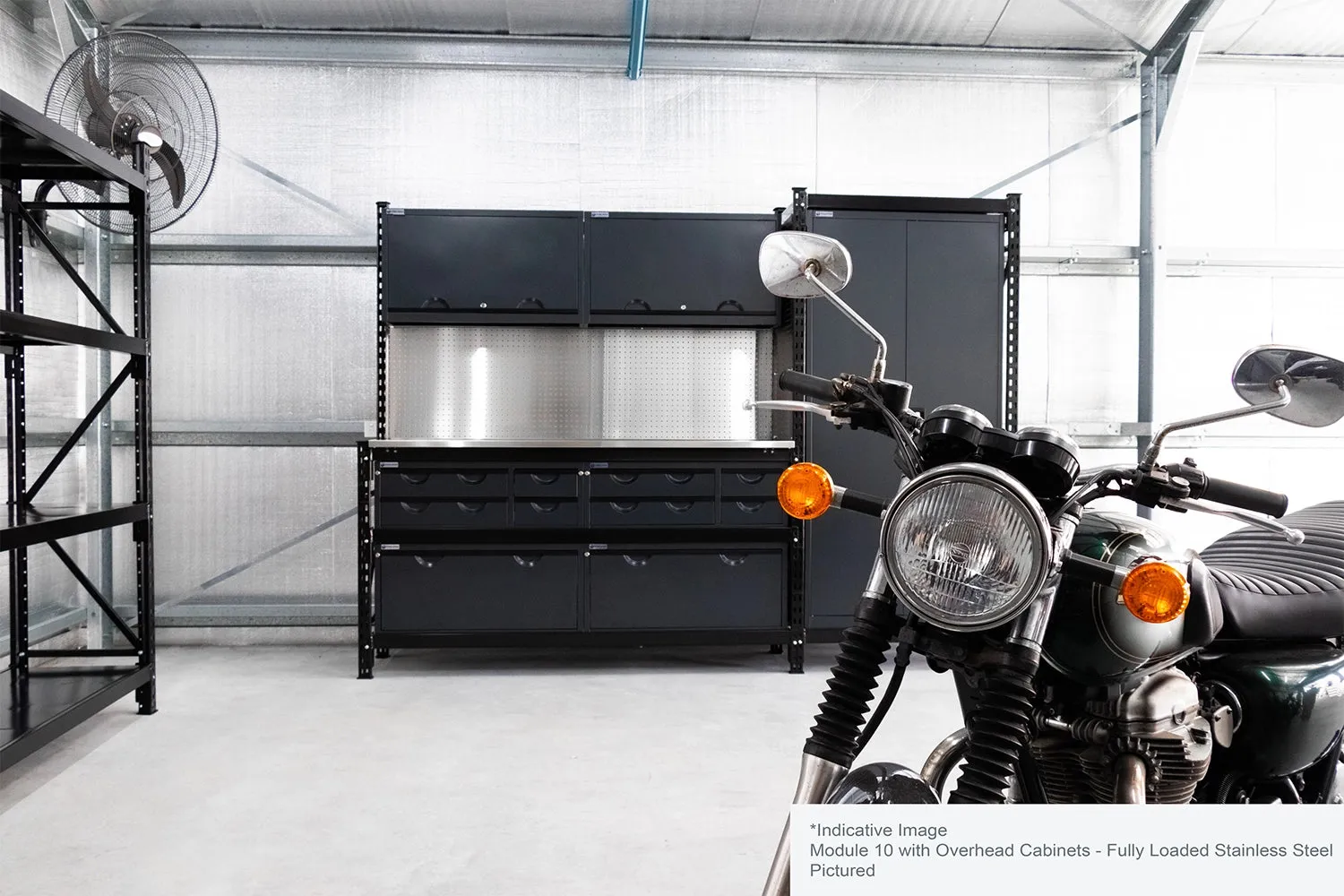

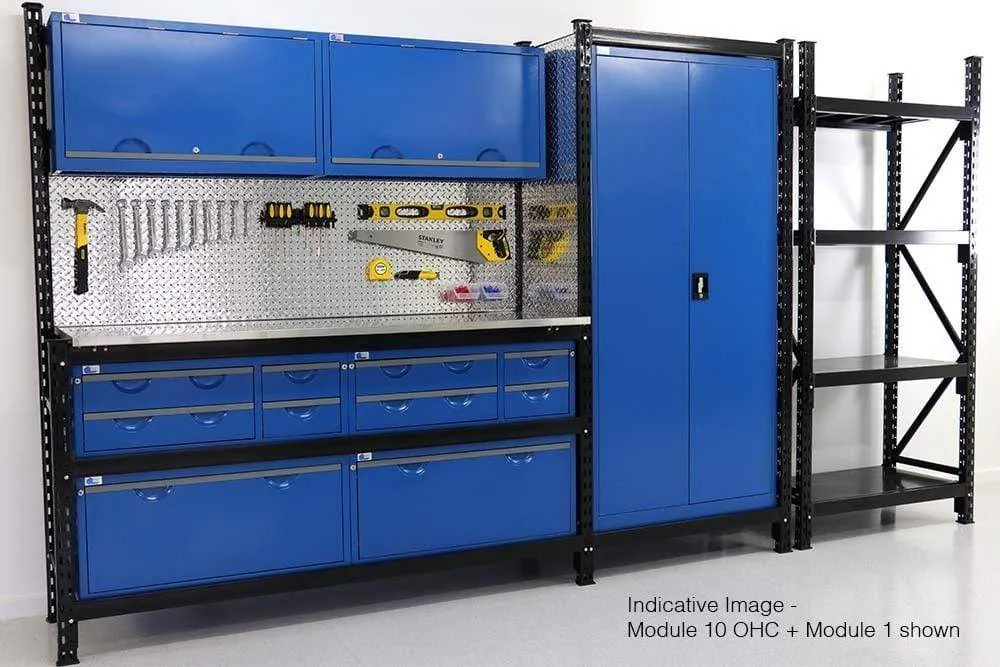

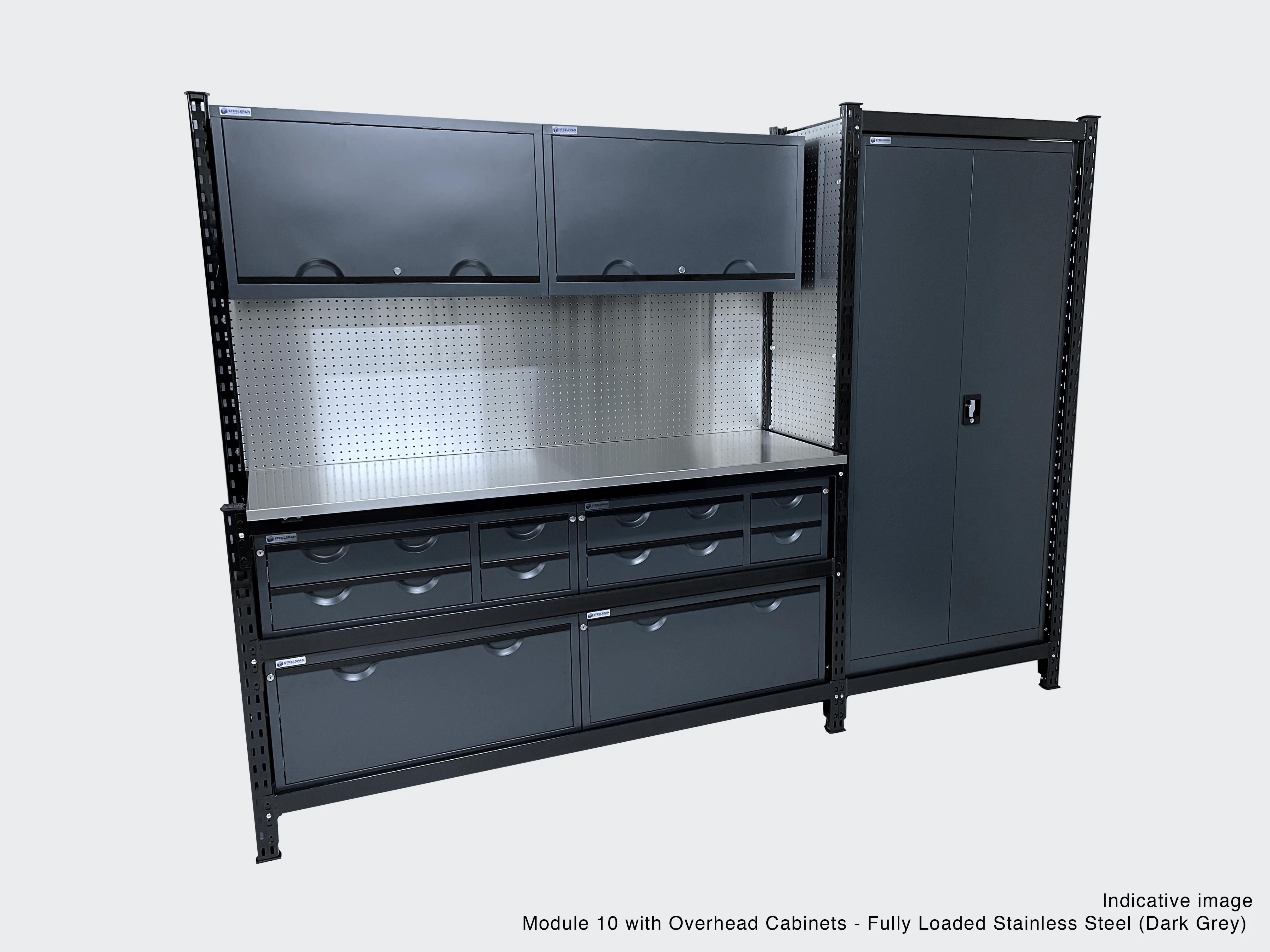

Modular storage system including a combination of work bench, tool drawers, cabinet, overhead cabinets and metal pegboard.

Features:

- Heavy duty work bench storage system
- Free standing
- Industrial strength
- Secure key lockable drawers and cabinets

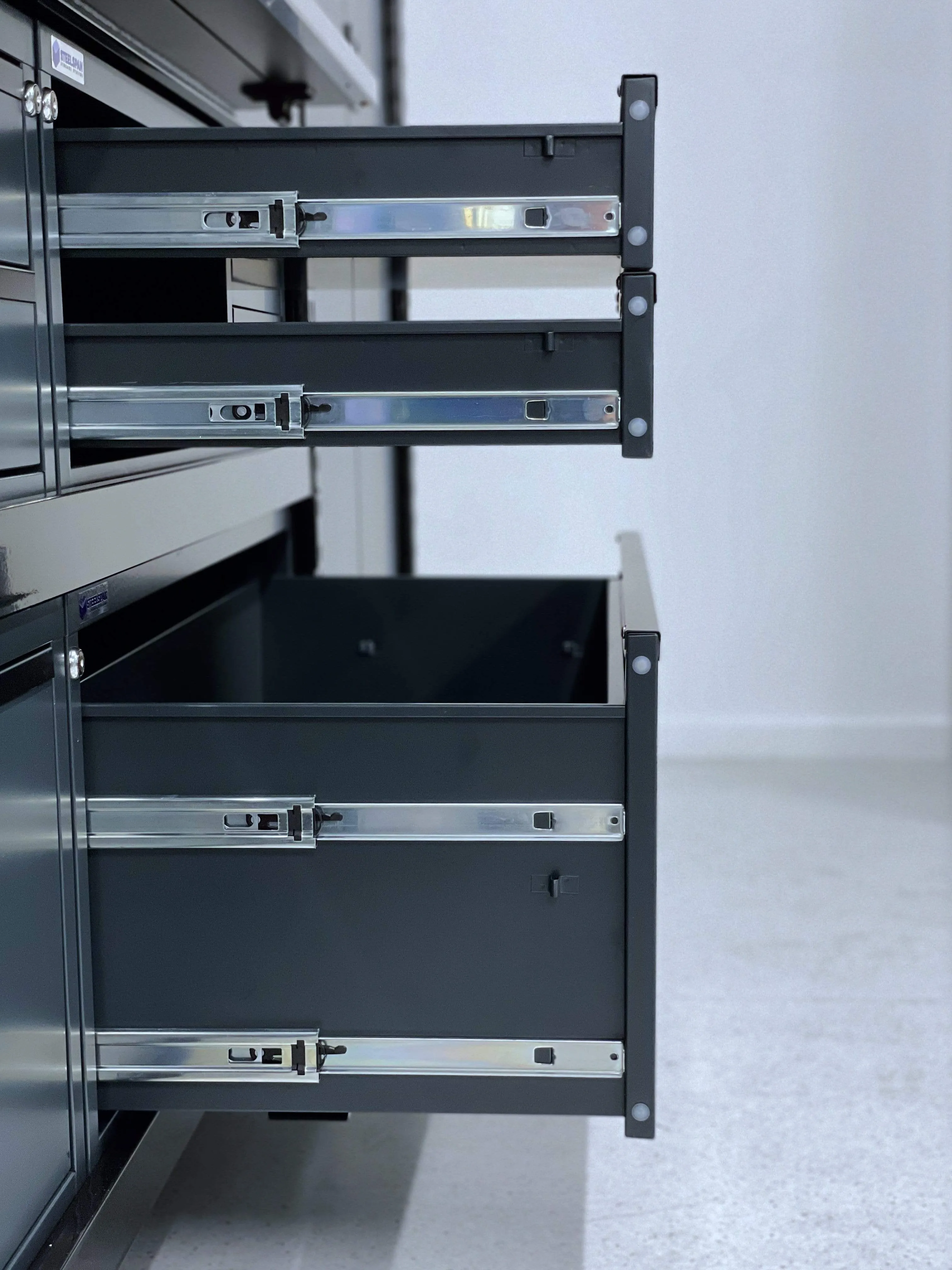

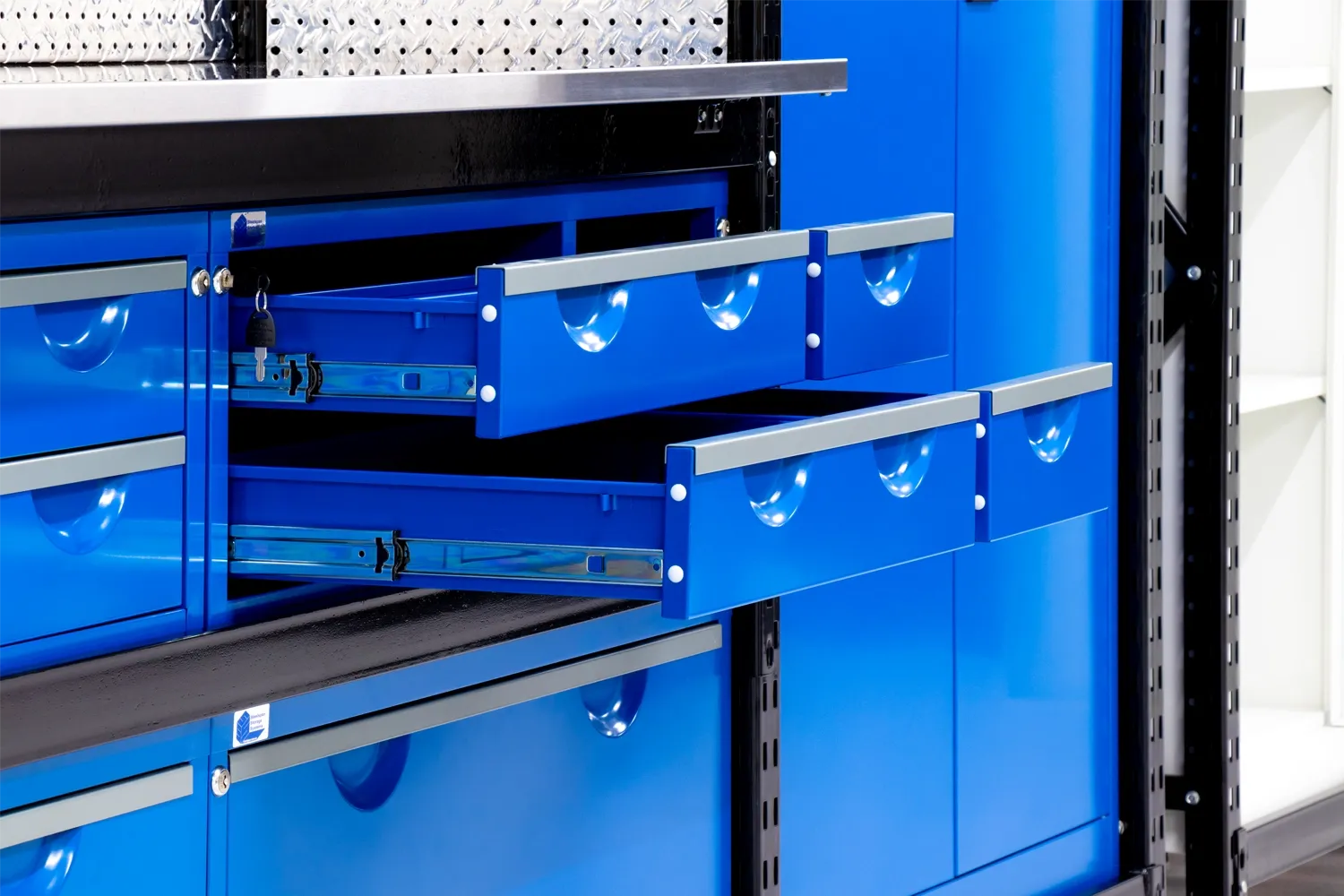

- Quality ball bearing drawer runners

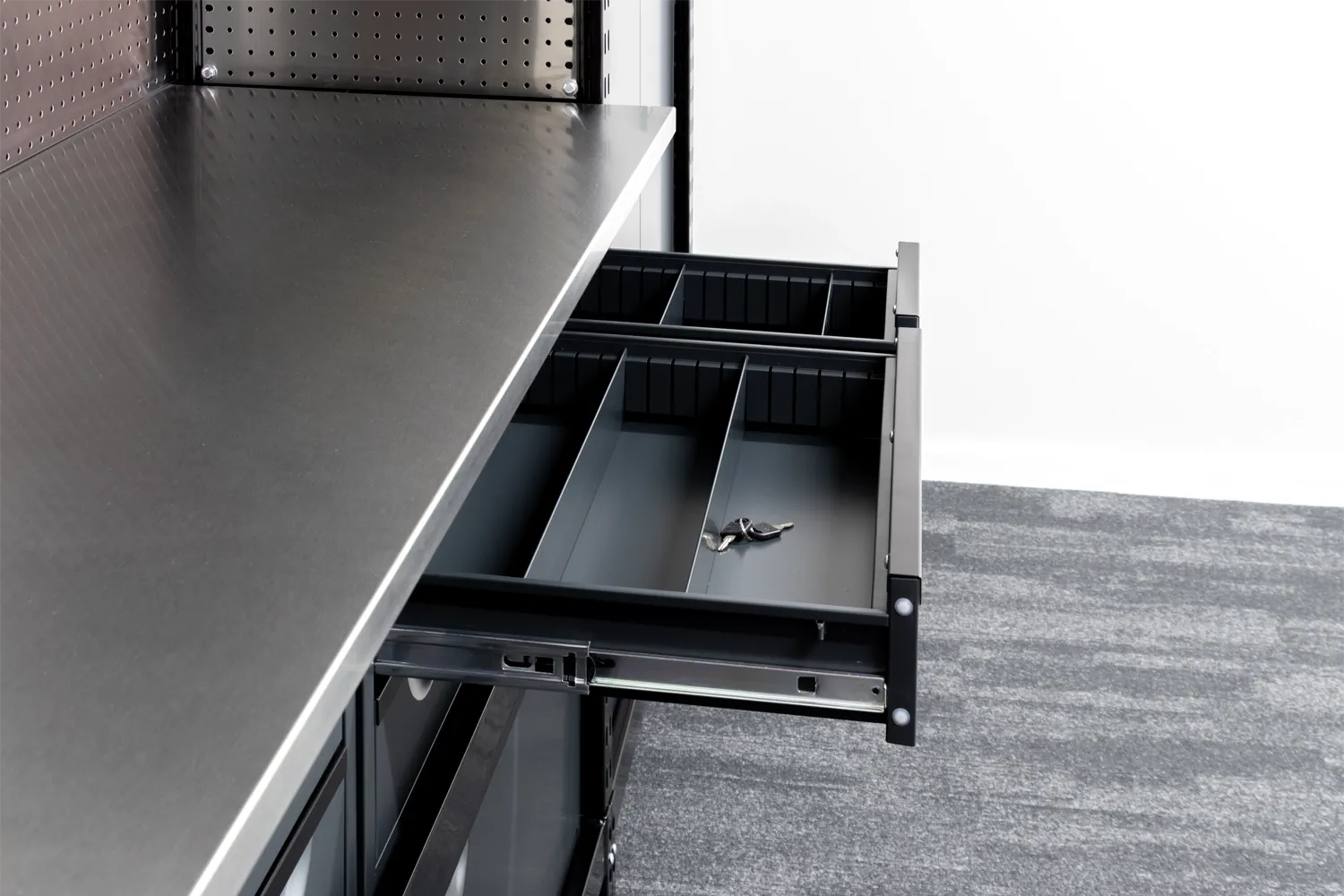

- Tool drawer dividers
- Quick installation (Cabinet 1865 flat-packed)
- Integrates with any other Steelspan storage system module

Options:

Colour:

- Blue
- Dark Grey

Work Bench Top:

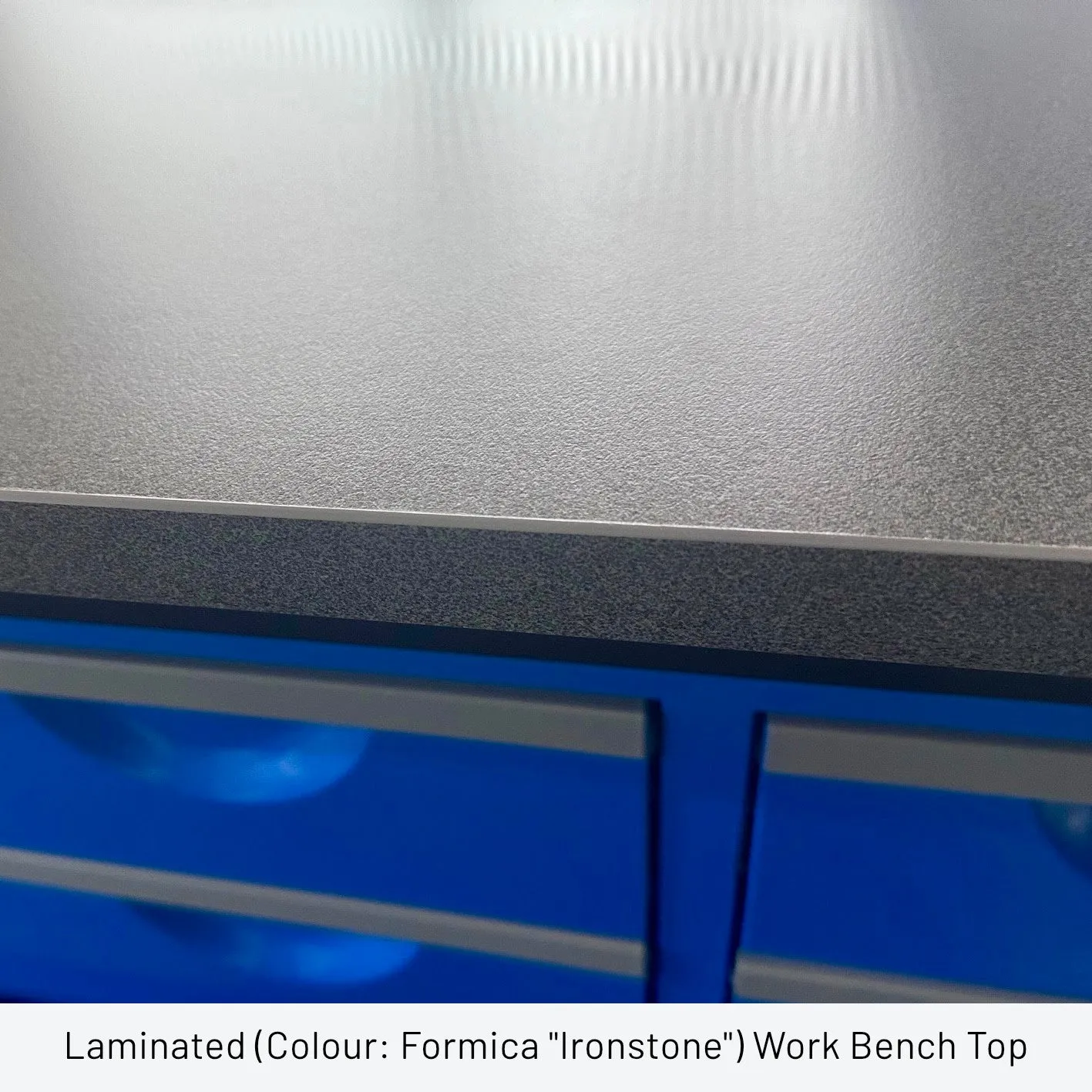

- Laminated (Colour: Formica "Ironstone", 25mm)

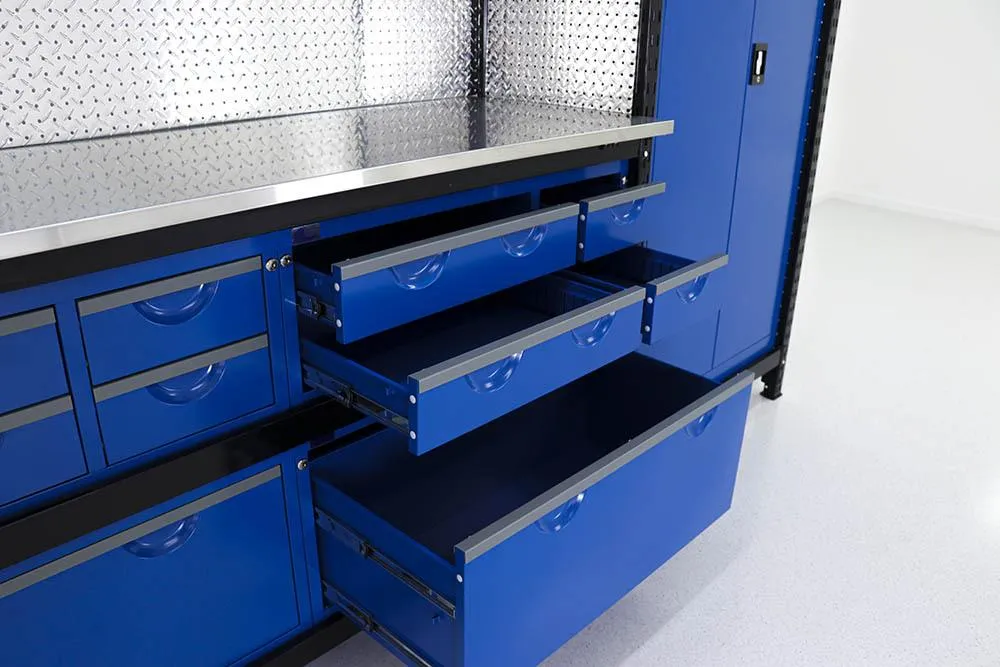

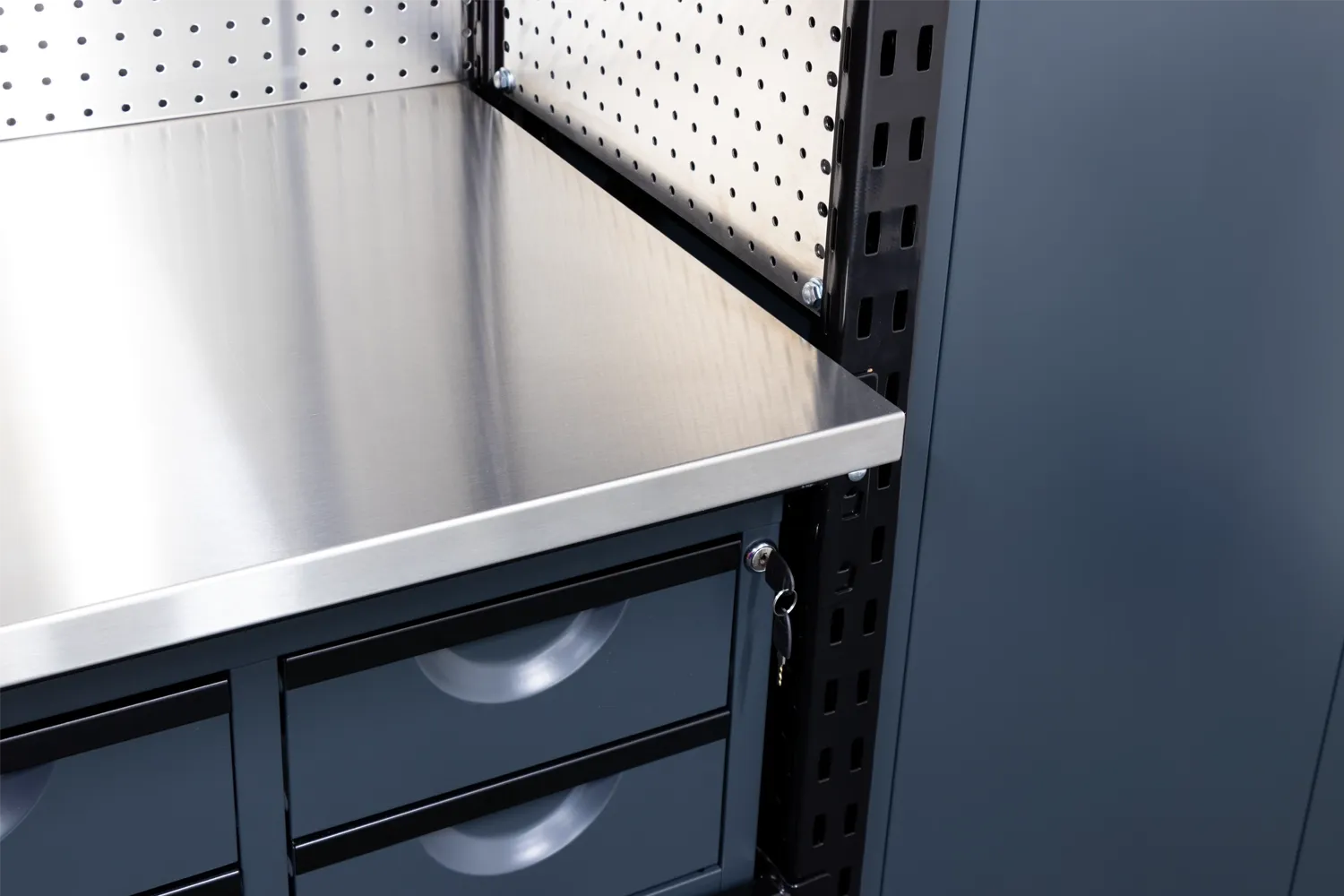

- Stainless Steel - sleeve over Laminated work bench top
- MDF - Raw Finish

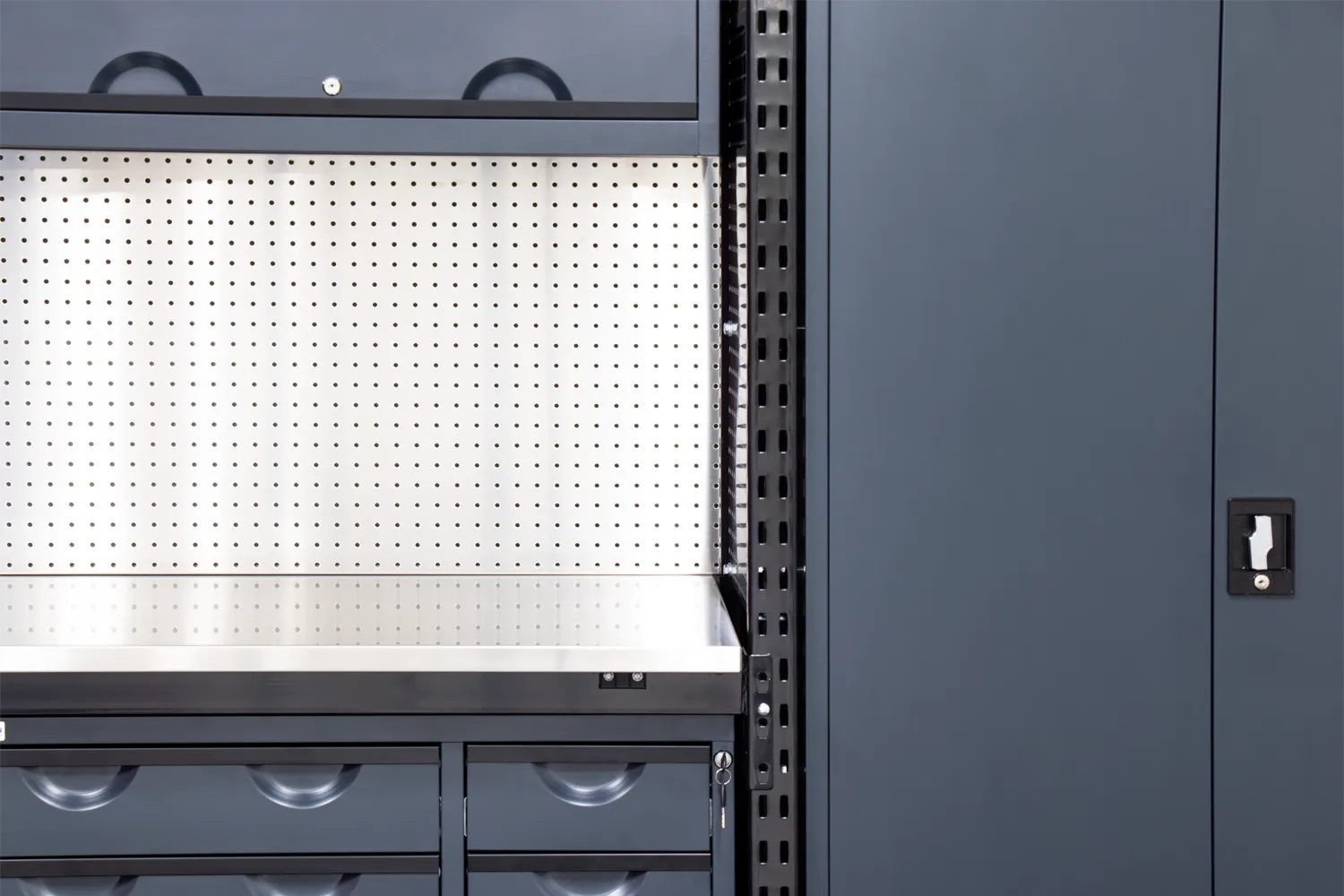

Pegboard Tool Display:

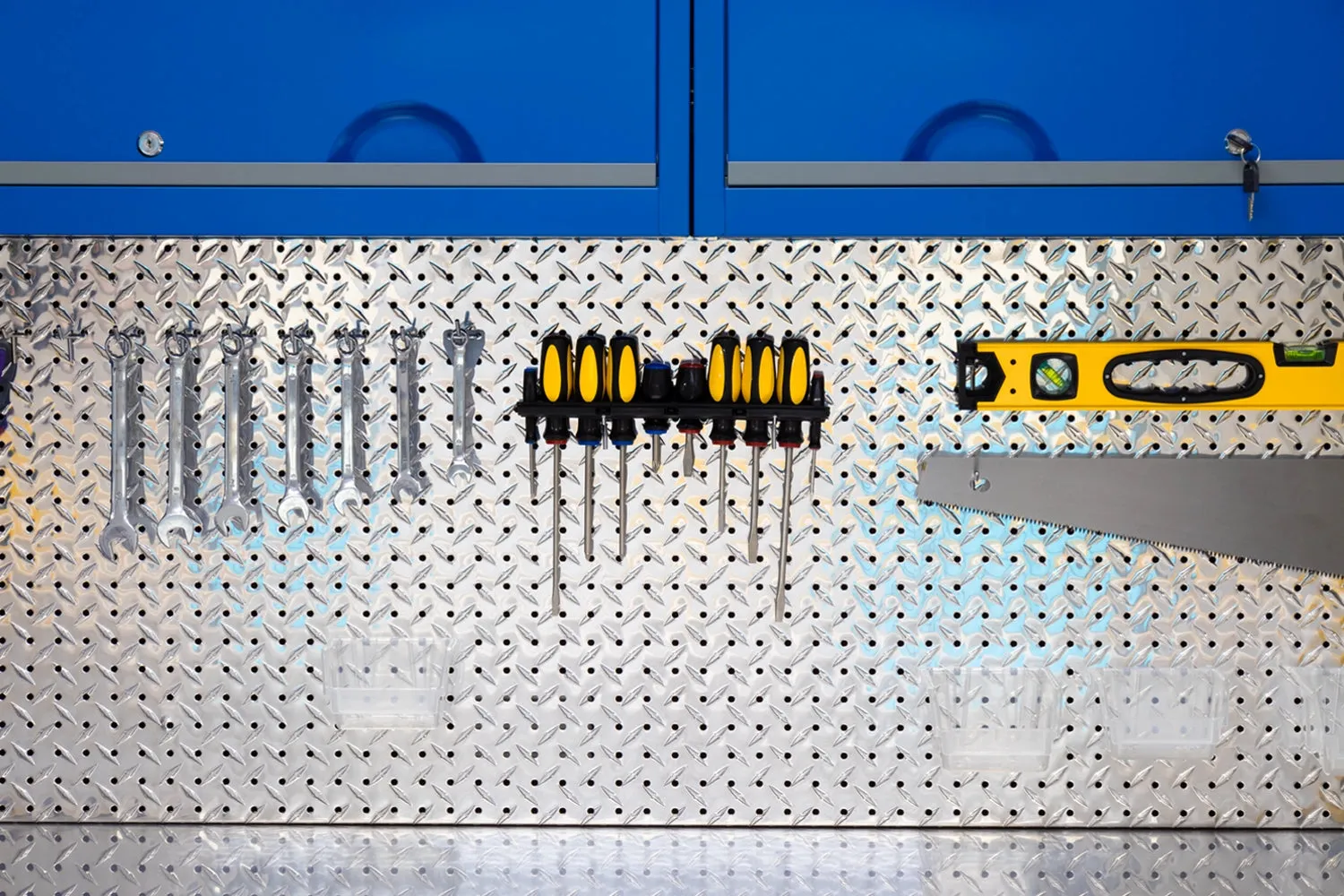

- Aluminium diamond plate (standard) - back only or back and side
- Stainless steel (option) - back only or back and side

- Cabinet Options: Cabinet 1865 (default), Tool Cabinet 1865 ()

Specifications:

- Powder coated steel drawers, cabinets and frame
- Metal pegboard
- Load capacity: 450kg/UDL

Dimensions:

Height: 2100mm
Width: 2880mm
Depth: 600mm

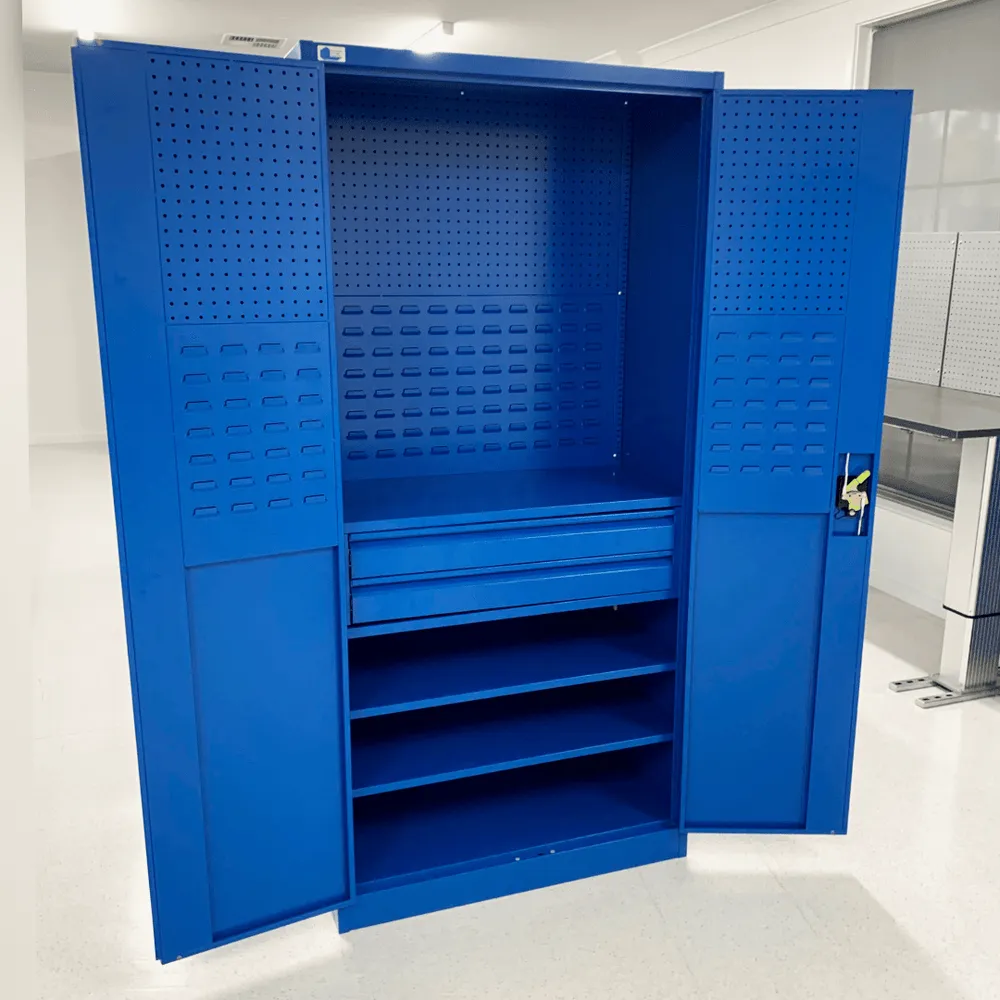

Cabinet 1865 Internal Dimension:

Height: 1757mm
Width: 888mm
Depth: 415mm

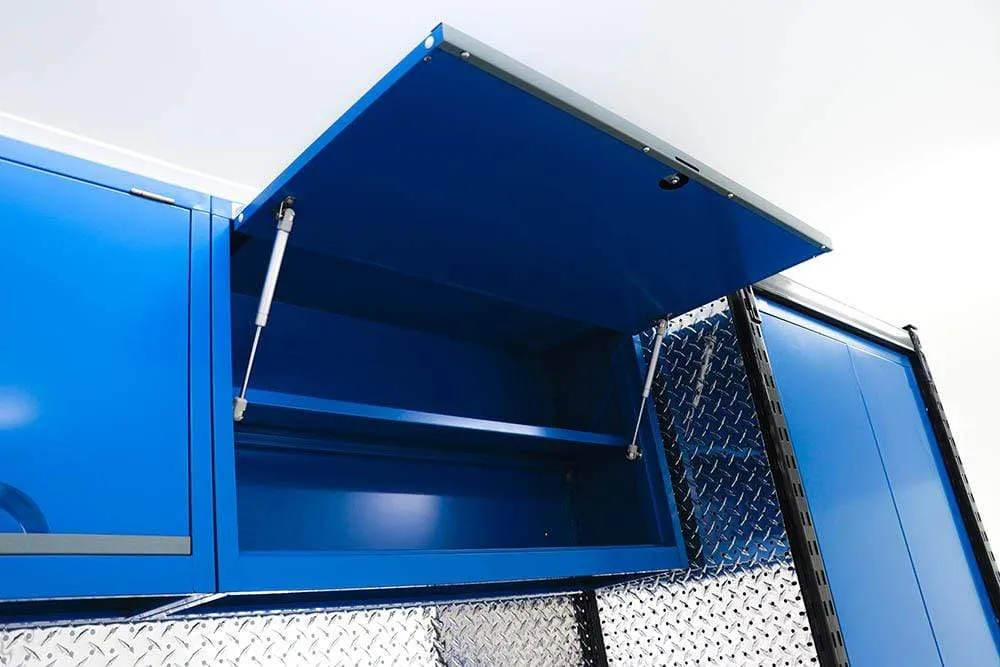

Overhead Cabinet Internal:

Height: 445mm
Width: 888mm
Cavity Depth: 215mm
Adjustable Shelf Depth: 170mm

D1 Large Drawer Internal:

Height: 320mm
Width: 810mm
Depth: 370mm

D4 4 Drawer Internals

Large Drawer Internal:
Height: 100mm
Width: 490mm
Depth: 370mm

Small Drawer Internal:
Height: 100mm
Width: 220mm
Depth: 370mm

Components:

2 x End Frame
1 x Open End Frame
8 x Beam 1800
4 x Beam 900
1 x Shelf (above cabinet)
1 x Work Bench Top 1800
1 x Pegboard Tool Display 1800 (Diamond Plate Aluminium)
2 x Overhead Cabinet
2 x Four Drawer Cabinet
2 x Large Drawer Cabinet
1 x Cabinet 1865 (4 x Adj. Shelves)
1 x Pegboard Hook & Bin Kit
